Portable High Precision CNC Miniature Machining Mini Lathe Machine

Portable High-Precision CNC Miniature Machining Lathe Telathe300A

Product Applications:

Telathe300A Miniature Lathe: Designed for educational purposes, hobby collections, and practical machining applications.

Product Introduction:

lEvery component undergoes strict quality control in material selection, hardness testing, machining, and surface treatment. Detailed data reports are archived to ensure traceability and compliance with international standards.

lThe entire machine is crafted from aluminum alloy and finished with CNC precision machining for enhanced metallic aesthetics.

Telathe300A Miniature Lathe Advantages:

lCompact size, high precision, user-friendly operation, and portability.

lCapable of machining diverse materials: copper, aluminum, plastic, wood, etc.

lKey Features: External/internal diameter turning, live center support for external turning, drilling, polishing, concentricity testing, and more.

lMachining Accuracy: Roundness accuracy: 0.003–0.004mm; external diameter accuracy: ±0.005mm; surface roughness: Ra0.8 (dependent on operator skill).

Product Features:

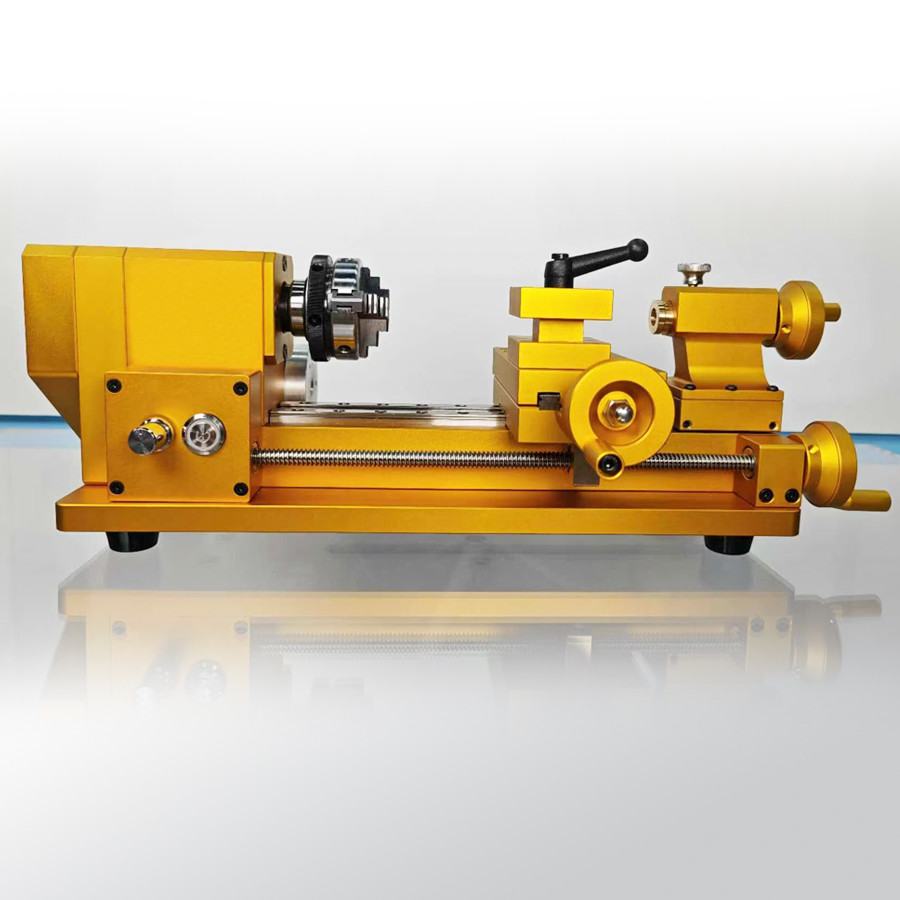

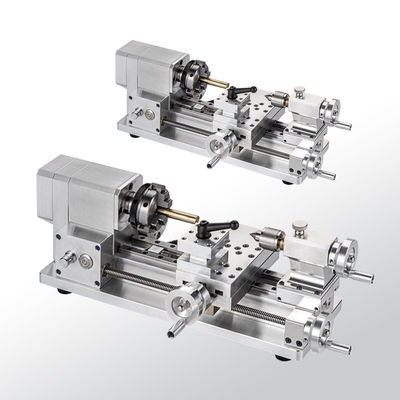

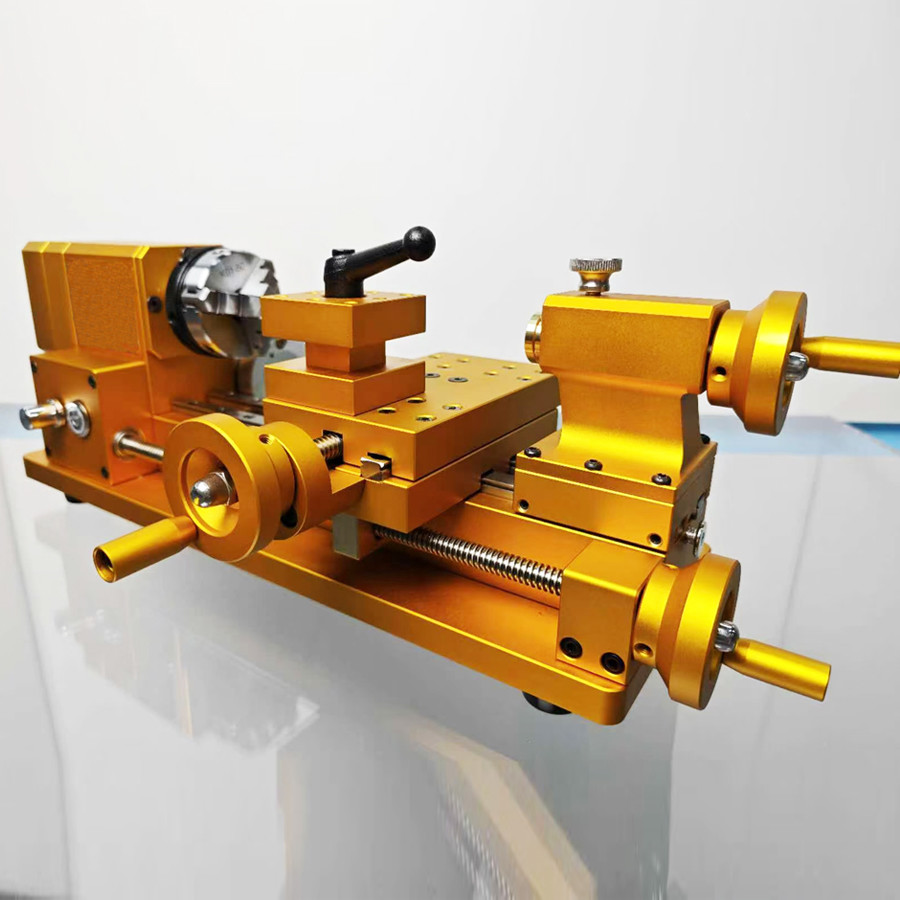

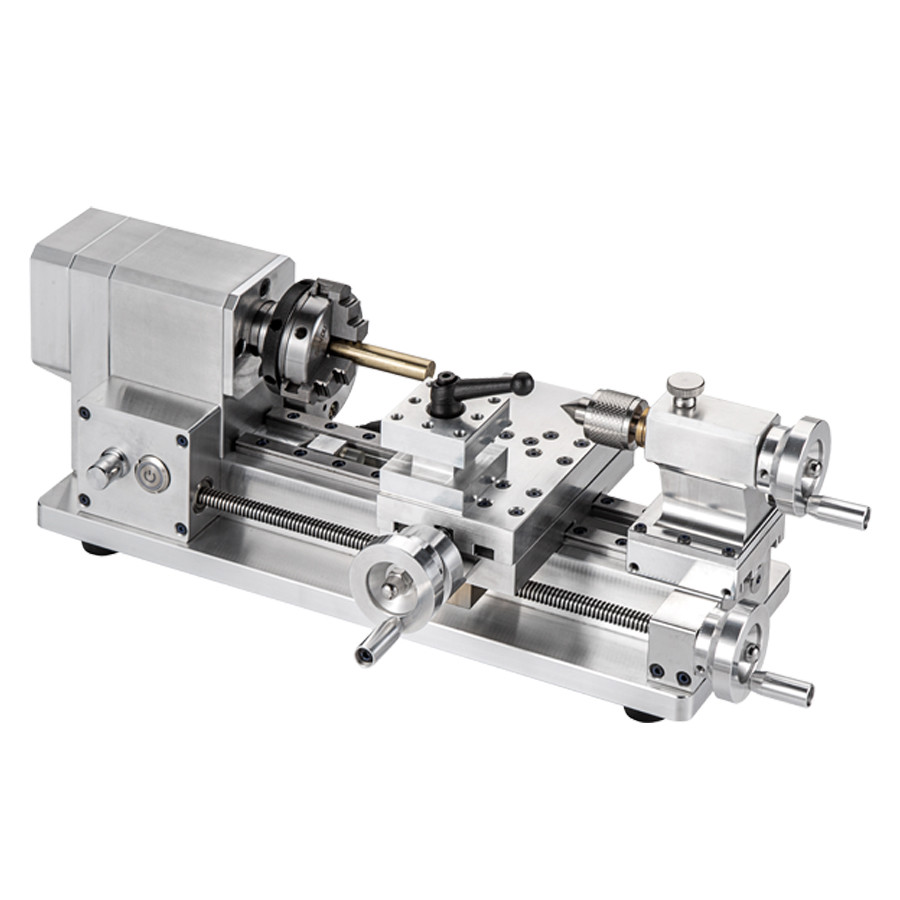

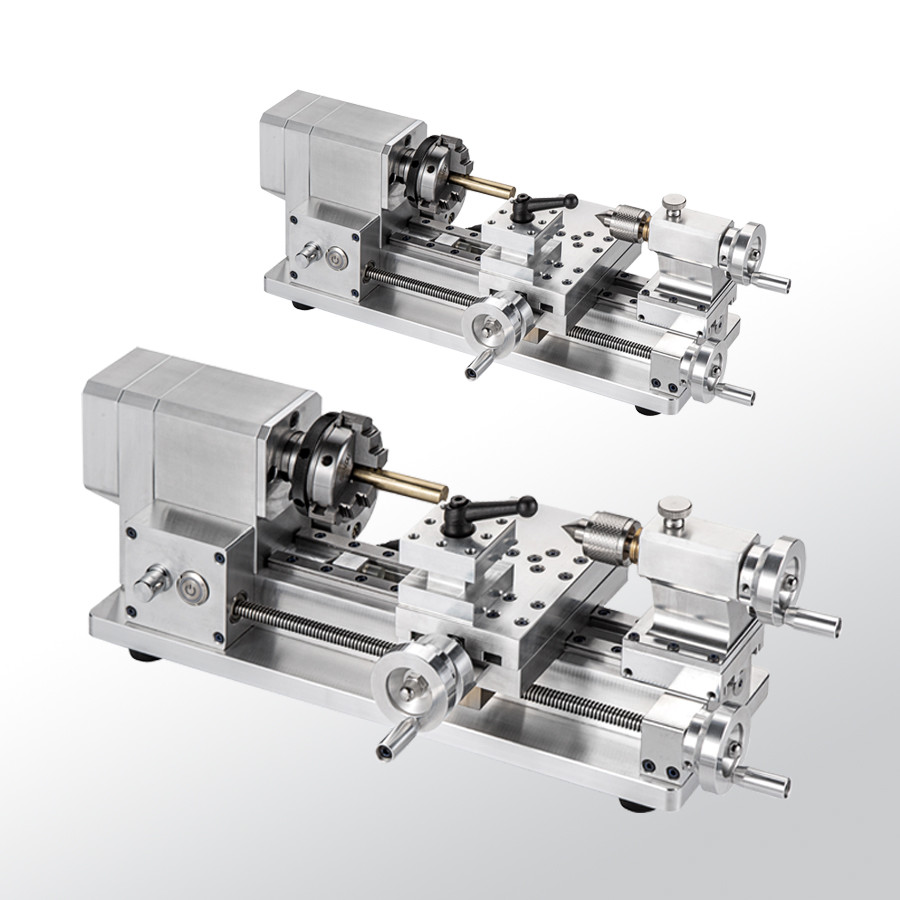

lColor Options: Raw machined finish, bright silver, and luxury gold—each exudes a premium texture to suit varied aesthetic preferences.

lPower Supply: 220V household voltage with a 24V 5A adapter for flexible usage.

lClamping Range: Forward/reverse jaws accommodate diameters from 1.0–50.0mm, catering to most user needs.

lMax Machining Length: External diameter processing up to 95mm for small workpieces.

lSpindle Speed: Brushless motor with 0–3000rpm stepless speed control ensures stable performance.

Technical Specifications:

Product Structure Diagram:
